VLP中添加客户的RZ/G2L板子编译 - 瑞萨MCU/MPU中文网站_生态社区_资料下载_样片申请

mkdir vlp3.0.6-update2 cd vlp3.0.6-update2/ tar xvf ../sdk-flile/vlp3.0.6-update2/RTK0EF0045Z0021AZJ-v3.0.6-update2/rzg_vlp_v3.0.6.tar.gz patch -p1 < ../../sdk-flile/vlp3.0.6-update2/RTK0EF0045Z0021AZJ-v3.0.6-update2/0001-rz-common-recipes-debian-buster-glibc-update-to-v2.2.patch patch -p1 < ../../sdk-flile/vlp3.0.6-update2/RTK0EF0045Z0021AZJ-v3.0.6-update2/0001-rz-common-linux-update-linux-kernel-to-the-latest-re.patch tar xvf ../sdk-flile/vlp3.0.6-update2/RTK0EF0045Z13001ZJ-v1.2.2_EN/meta-rz-features_graphics_v1.2.2.tar.gz tar xvf ../sdk-flile/vlp3.0.6-update2/RTK0EF0045Z15001ZJ-v1.2.1_EN/meta-rz-features_codec_v1.2.1.tar.gz

cd meta-renesas/ 创建oem-rzg2l.conf cp meta-rzg2l/conf/machine/smarc-rzg2l.conf meta-rzg2l/conf/machine/oem-rzg2l.conf 修改 ./meta-rzg2l/conf/machine/oem-rzg2l.conf： diff --git a/meta-rzg2l/conf/machine/oem-rzg2l.conf b/meta- rzg2l/conf/machine/oem-rzg2l.conf index 49666a8..d78e634 100644 --- a/meta-rzg2l/conf/machine/oem-rzg2l.conf +++ b/meta-rzg2l/conf/machine/oem-rzg2l.conf @@ -1,6 +1,6 @@ #@TYPE: Machine -#@NAME: smarc-rzg2l machine -#@DESCRIPTION: RZ/G2L SMARC platform +#@NAME: oem-rzg2l machine +#@DESCRIPTION: RZ/G2L OEM platform SOC_FAMILY = "r9a07g044l" require conf/machine/include/rzg2l-common.inc @@ -13,8 +13,8 @@ require ${TUNE_CONF} PREFERRED_PROVIDER_virtual/kernel="linux-renesas" -UBOOT_CONFIG ??= "smarc-rzg2l" -UBOOT_CONFIG[smarc-rzg2l] = "smarc-rzg2l_defconfig" +UBOOT_CONFIG ??= "oem-rzg2l" +UBOOT_CONFIG[oem-rzg2l] = "oem-rzg2l_defconfig" # flash writer EXTRA_IMAGEDEPENDS += " flash-writer" @@ -25,7 +25,7 @@ PMIC_SUPPORT ?= "1" # Supported devicetree KERNEL_DEVICETREE = " \ - renesas/r9a07g044l2-smarc.dtb \ + renesas/r9a07g044l2-oem.dtb \ " IMAGE_BOOT_FILES = " \ @@ -37,7 +37,7 @@ IMAGE_BOOT_FILES = " \ bl2_bp-${MACHINE}.srec \ fip-${MACHINE}_pmic.srec \ fip-${MACHINE}.srec \ - Flash_Writer_SCIF_RZG2L_SMARC_PMIC_DDR4_2GB_1PCS.mot \ - Flash_Writer_SCIF_RZG2L_SMARC_DDR4_2GB.mot \ + Flash_Writer_SCIF_RZG2L_OEM_PMIC_DDR4_2GB_1PCS.mot \ + Flash_Writer_SCIF_RZG2L_OEM_DDR4_2GB.mot \ " WIC_INPUT_DEPENDS = "firmware-pack:do_deploy flash-writer:do_deploy" cp meta-rzg2l/docs/template/conf/smarc-rzg2l/ meta-rzg2l/docs/template/conf/oem-rzg2l 修改./meta-rzg2l/docs/template/conf/oem-rzg2l/site.conf: -MACHINE ??= "smarc-rzg2l" +MACHINE ??= "oem-rzg2l" cp docs/template/conf/smarc-rzg2l docs/template/conf/oem-rzg2l -rf 修改 ./meta-rzg2l/docs/template/conf/oem-rzg2l/site.conf: -MACHINE ??= "smarc-rzg2l" +MACHINE ??= "oem-rzg2l"

diff --git a/README.md b/README.md index 55a1122..7bfc8fd 100644 --- a/README.md +++ b/README.md @@ -13,6 +13,7 @@ Currently the following boards and MPUs are supported: - Board: HIHOPE-RZG2N / MPU: R8A774B1 (RZG2N) - Board: HIHOPE-RZG2H / MPU: R8A774E1 (RZG2H) - Board: RZG2L SMARC Evaluation Kit / MPU: R9A07G044L (RZ/G2L) +- Board: RZG2L OEM custom board / MPU: R9A07G044L (RZ/G2L) - Board: RZG2L Development Evaluation Kit / MPU: R9A07G044L (RZ/G2L) - Board: RZG2LC SMARC Evaluation Kit / MPU: R9A07G044C (RZ/G2LC) - Board: RZG2LC Development Evaluation Kit / MPU: R9A07G044C (RZ/G2L) @@ -194,7 +195,7 @@ Currently, there are 2 types of build procedure supported in below description: |RZ/G2M |rzg2h |hihope-rzg2m | |RZ/G2N |rzg2h |hihope-rzg2n | |RZ/G2E |rzg2h |ek874 | -|RZ/G2L |rzg2l |smarc-rzg2l, rzg2l-dev | +|RZ/G2L |rzg2l |smarc-rzg2l, rzg2l-dev, oem-rzg2l | |RZ/G2LC |rzg2l |smarc-rzg2lc, rzg2lc-dev| |RZ/G2UL |rzg2l |smarc-rzg2ul, rzg2ul-dev| |RZ/V2L |rzv2l |smarc-rzv2l, rzv2l-dev | @@ -217,7 +218,7 @@ Currently, there are 2 types of build procedure supported in below description: * RZ/G2M: hihope-rzg2m * RZ/G2N: hihope-rzg2n * RZ/G2E: ek874 -* RZ/G2L: smarc-rzg2l, rzg2l-dev +* RZ/G2L: smarc-rzg2l, rzg2l-dev, oem-rzg2l * RZ/G2LC: smarc-rzg2lc, rzg2lc-dev * RZ/G2UL: smarc-rzg2ul, rzg2ul-dev * RZ/V2L: smarc-rzv2l, rzv2l-dev

diff --git a/makefile b/makefile index 0d4c834..f6862e1 100644 --- a/makefile +++ b/makefile @@ -26,6 +26,24 @@ DEVICE = RZG2L DDR_TYPE = DDR4 DDR_SIZE = 2GB_1PCS SWIZZLE = T1BC +else ifeq ("$(BOARD)", "RZG2L_OEM") +#-------------------------------------- +# RZ/G2L Oem Custom board +#-------------------------------------- +FILENAME_ADD = _RZG2L_OEM +DEVICE = RZG2L+DDR_TYPE = DDR4 +DDR_SIZE = 2GB+SWIZZLE = T1C +else ifeq ("$(BOARD)", "RZG2L_OEM_PMIC") +#-------------------------------------- +# RZ/G2L Oem PMIC Custom board +#-------------------------------------- +FILENAME_ADD = _RZG2L_OEM_PMIC +DEVICE = RZG2L +DDR_TYPE = DDR4 +DDR_SIZE = 2GB_1PCS+SWIZZLE = T1BC else ifeq ("$(BOARD)", "RZG2L_15MMSQ_DEV") #-------------------------------------- # RZ/G2L 15MMSQ Dev board diff --git a/makefile.linaro b/makefile.linaro index 453572f..1a6f61b 100644 --- a/makefile.linaro +++ b/makefile.linaro @@ -26,6 +26,24 @@ DEVICE = RZG2L DDR_TYPE = DDR4 DDR_SIZE = 2GB_1PCS SWIZZLE = T1BC +else ifeq ("$(BOARD)", "RZG2L_OEM") +#-------------------------------------- +# RZ/G2L Oem Custom board +#-------------------------------------- +FILENAME_ADD = _RZG2L_OEM +DEVICE = RZG2L +DDR_TYPE = DDR4 +DDR_SIZE = 2GB +SWIZZLE = T1C +else ifeq ("$(BOARD)", "RZG2L_OEM_PMIC") +#-------------------------------------- +# RZ/G2L Oem PMIC Custom board +#-------------------------------------- +FILENAME_ADD = _RZG2L_OEM_PMIC +DEVICE = RZG2L +DDR_TYPE = DDR4 +DDR_SIZE = 2GB_1PCS +SWIZZLE = T1BC else ifeq ("$(BOARD)", "RZG2L_15MMSQ_DEV") #-------------------------------------- # RZ/G2L 15MMSQ Dev board -- 2.25.1

git clone https://github.com/renesas-rz/rzg_trusted-firmware-a cd rzg_trusted-firmware-a git checkout v2.9/rzg2 cp plat/renesas/rz/board/smarc_2/ plat/renesas/rz/board/oem_g2l -rf cp plat/renesas/rz/board/smarc_pmic_2/ plat/renesas/rz/board/oem_pmic_g2l -rf

diff --git a/meta-rzg2l/recipes-bsp/trusted-firmware-a/trusted-firmware-a.bbappend b/meta-rzg2l/recipes-bsp/trusted-firmware-a/trusted-firmware-a.bbappend index b342698..8cd4c4f 100644 --- a/meta-rzg2l/recipes-bsp/trusted-firmware-a/trusted-firmware-a.bbappend +++ b/meta-rzg2l/recipes-bsp/trusted-firmware-a/trusted-firmware-a.bbappend @@ -28,6 +25,10 @@ PMIC_EXTRA_FLAGS_smarc-rzv2l = "BOARD=smarc_pmic_2" PLATFORM_rzv2l-dev = "v2l" EXTRA_FLAGS_rzv2l-dev = "BOARD=dev15_4" +PLATFORM_oem-rzg2l = "g2l" +EXTRA_FLAGS_oem-rzg2l = "BOARD=oem_g2l" +PMIC_EXTRA_FLAGS_oem-rzg2l = "BOARD=oem_pmic_g2l" + PMIC_BUILD_DIR = "${S}/build_pmic" FILES_${PN} = "/boot " Enable trusted-firmware-a recipes build by MACHINE oem-rzg2l: diff --git a/meta-rz-common/recipes-bsp/trusted-firmware-a/trusted-firmware-a.bb b/meta-rz-common/recipes-bsp/trusted-firmware-a/trusted-firmware-a.bb index ba16b28..8bd5c0a 100644 --- a/meta-rz-common/recipes-bsp/trusted-firmware-a/trusted-firmware-a.bb +++ b/meta-rz-common/recipes-bsp/trusted-firmware-a/trusted-firmware-a.bb @@ -22,7 +22,7 @@ SRCREV = "cc18695622e5637ec70ee3ae8eb5e83b09d13804" PV = "v2.9+git" COMPATIBLE_MACHINE_rzg2h = "(ek874|hihope-rzg2m|hihope-rzg2n|hihope-rzg2h)" -COMPATIBLE_MACHINE_rzg2l = "(smarc-rzg2l|rzg2l-dev|smarc-rzg2lc|rzg2lc-dev|smarc-rzg2ul|rzg2ul-dev|smarc-rzv2l|rzv2l-dev)" +COMPATIBLE_MACHINE_rzg2l = "(smarc-rzg2l|rzg2l-dev|smarc-rzg2lc|rzg2lc-dev|smarc-rzg2ul|rzg2ul-dev|smarc-rzv2l|rzv2l-dev|oem-rzg2l)" PLATFORM ?= "rzg"

cd renesas-u-boot-cip git checkout v2021.10/rz cp arch/arm/dts/smarc-rzg2l.dts arch/arm/dts/oem-rzg2l.dts cp configs/smarc-rzg2l_defconfig configs/oem-rzg2l_defconfig cp include/configs/smarc-rzg2l.h include/configs/oem-rzg2l.h

git clone https://github.com/renesas-rz/rz_linux-cip cd rz_linux-cip git checkout rz-5.10-cip41 cp arch/arm64/boot/dts/renesas/r9a07g044l2-smarc.dts arch/arm64/boot/dts/renesas/r9a07g044l2-oem.dts 修改arch/arm64/boot/dts/renesas/Makefile diff --git a/arch/arm64/boot/dts/renesas/Makefile b/arch/arm64/boot/dts/renesas/Makefile index 0b41c780bb66..f10acb7138af 100644 --- a/arch/arm64/boot/dts/renesas/Makefile +++ b/arch/arm64/boot/dts/renesas/Makefile @@ -90,6 +90,7 @@ dtb-$(CONFIG_ARCH_R9A07G043) += r9a07g043u11-dev.dtb dtb-$(CONFIG_ARCH_R9A07G044) += r9a07g044c2-smarc.dtb dtb-$(CONFIG_ARCH_R9A07G044) += r9a07g044c2-dev.dtb dtb-$(CONFIG_ARCH_R9A07G044) += r9a07g044l2-smarc.dtb +dtb-$(CONFIG_ARCH_R9A07G044) += r9a07g044l2-oem.dtb dtb-$(CONFIG_ARCH_R9A07G044) += r9a07g044l2-dev.dtb dtb-$(CONFIG_ARCH_R9A07G054) += r9a07g054l2-smarc.dtb

+FILESEXTRAPATHS_prepend := "${THISDIR}/${PN}:" + +SRC_URI_append = " \ + file://0001-Kernel-add-RZ-G2L-Low-Cost-Board.patch \ +" mkdir meta-renesas/meta-rzg2l/recipes-kernel/linux/linux-renesas/ 将补丁0001-Kernel-add-oem-rzg2l-custom-board.patch导入VLP中 cp 0001-Kernel-add-oem-rzg2l-custom-board.patch /meta-rzg2l/recipes-kernel/linux

diff --git a/meta-rz-common/recipes-kernel/linux/linux-renesas_5.10.bb b/meta-rz-common/recipes-kernel/linux/linux-renesas_5.10.bb index cacbe7a..c921e1c 100644 --- a/meta-rz-common/recipes-kernel/linux/linux-renesas_5.10.bb +++ b/meta-rz-common/recipes-kernel/linux/linux-renesas_5.10.bb @@ -3,7 +3,7 @@ DESCRIPTION = "Linux kernel for the RZG2 based board" require recipes-kernel/linux/linux-yocto.inc FILESEXTRAPATHS_prepend := "${THISDIR}/${PN}/:" -COMPATIBLE_MACHINE_rzg2l = "(smarc-rzg2l|rzg2l-dev|smarc-rzg2lc|rzg2lc-dev|smarc-rzg2ul|rzg2ul-dev|smarc-rzv2l|rzv2l-dev)" +COMPATIBLE_MACHINE_rzg2l = "(smarc-rzg2l|rzg2l-dev|smarc-rzg2lc|rzg2lc-dev|smarc-rzg2ul|rzg2ul-dev|smarc-rzv2l|rzv2l-dev|oem-rzg2l)" COMPATIBLE_MACHINE_rzg2h = "(ek874|hihope-rzg2n|hihope-rzg2m|hihope-rzg2h)" COMPATIBLE_MACHINE_rzfive = "(smarc-rzfive|rzfive-dev)" COMPATIBLE_MACHINE_rzv2m = "(rzv2m)"

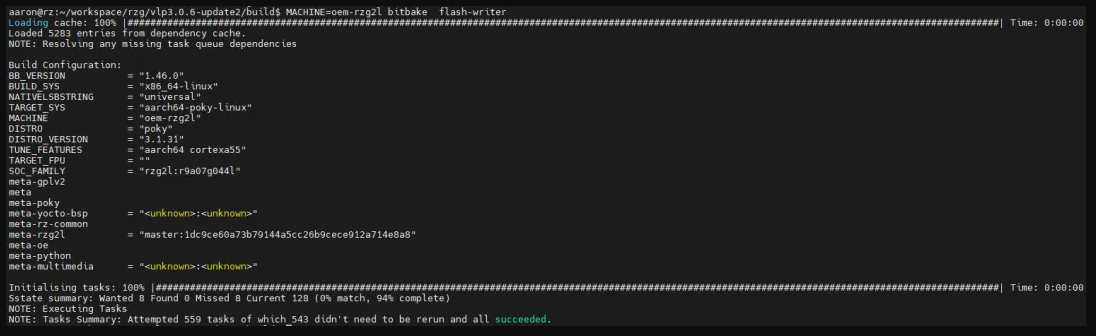

cd vlp3.0.6-update2 TEMPLATECONF=$PWD/meta-renesas/meta-rzg2l/docs/template/conf/ source poky/oe-init-build-env build cp oss_pkg_rzg_v3.0.6-update2.7z build cd build 7z x oss_pkg_rzg_v3.0.6-update2.7z MACHINE=oem-rzg2l bitbake flash-writer
